Master Batch Mixers

Master Batch Mixers
Master Batch Mixers
Product Code : 07
Product Description

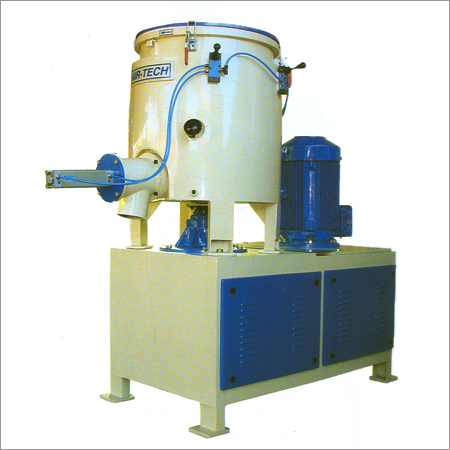

Master Batch Mixers

Air-Tech Master Batch mixers are designed for blending master batch with virgin granules, Mixing pigments or pigment paste with granules or polymer powders, Rigid/ Plasticized PVC compounding etc. These mixers helps in achieving uniform blending & mixing.

Features

  • Sturdy Construction
  • Stainless Steel Vessel polished to mirror finish. Twin jacket for heating /cooling.
  • Pneumatically operated lid & discharge valve.
  • Heavy Duty Bearing Housing with best quality bearings for trouble free working.
  • Short batch time & high operational capacity.
  • Optimal product mixing with homogenous dispersion.
  • Complete elimination of moisture residue from the material.
  • Highly energy efficient.

Technical Specifications

MODEL NO

BATCH CAPACIY KGS

VESSEL CAPACTY

DRIVER MOTOR(H.P)

MIXING TOOL



(LTRS)


SPEED R.P.M

ATH-30

25-30

100

15

900

ATH-50

40-55

150

25

900

ATH-75

65-80

200

40

850

ATH-100

90-100

250

60

840

ATH-150

120-150

350

75

700

ATH-200

160-200

500

120

550

ATH-300

280-300

750

175

500

ATH-400

400-430

1000

225

500

Utility:

  • Electric supply 415 Volts, 3 Phase 50 Cycles AC
  • Compressed Air at 5 cfm & working pressure at 5 Bar
  • Water pressure 1-2 Kgf/cm2

Note:

  • The mix weights are valid for PVC formulae with apparent density of 0.5 Kg/I inclusive of additives & final temperature of 120* C of Heating Mixer & 45*C for Cooling Mixer
  • AC Frequency Drives & Soft - Start Starters can be fitted to all models on request.
  • For the betterment of the product the above specifications can be changed without notice
